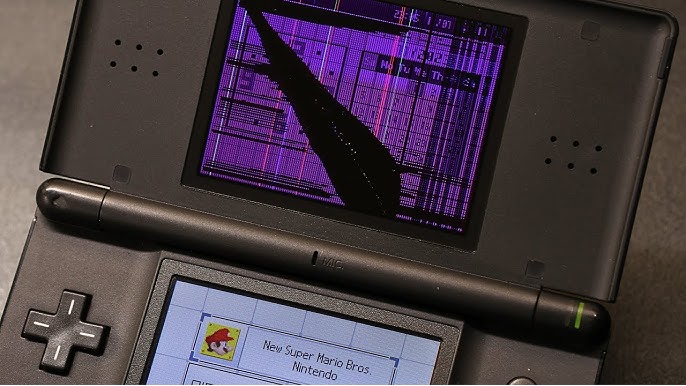

A broken screen on your Nintendo DS Lite can be a frustrating experience, but it doesn’t mean the end of your beloved handheld console. With the right tools, a bit of patience, and this step-by-step guide, you can replace the broken screen and get your DS Lite back in working order. This article will walk you through the entire process of fixing a broken screen on your Nintendo DS Lite.
Tools and Materials Needed
Before you begin, gather the following tools and materials:
- A replacement screen for the Nintendo DS Lite (ensure you get the correct top or bottom screen as needed)
- A small Phillips-head screwdriver
- A plastic opening tool or spudger
- Tweezers
- A small flat-head screwdriver
- A clean, static-free work surface
- Adhesive tape (optional)
Also Read- 7 Top Puzzle Games For Nintendo DS Lite To Keep Your Mind Sharp
Step 1: Power Off and Disassemble the DS Lite
Power Off the Device
Ensure the Nintendo DS Lite is completely powered off. Remove any game cartridges and the stylus. Disconnect any chargers or accessories.
Remove the Battery
- Turn the DS Lite over and locate the battery cover on the back.
- Use a small Phillips-head screwdriver to remove the screw securing the battery cover.
- Lift off the battery cover and remove the battery from its compartment.
Remove the Screws
- Use the Phillips-head screwdriver to remove the screws from the back of the DS Lite. There are four screws near the corners and two hidden under the rubber feet at the top.
- Carefully peel off the rubber feet to access the hidden screws.
Separate the Back Cover
- Use a plastic opening tool or spudger to gently pry apart the back cover from the front cover. Start at the corners and work your way around the edges.
- Be cautious not to damage the clips holding the covers together.
Also Read- 7 Best Horror Games For The Nintendo DS Lite
Step 2: Access the Broken Screen
Disconnect the Ribbon Cables
- Locate the ribbon cables connecting the screen to the motherboard. There are usually two ribbon cables for the top screen and one for the bottom screen.
- Use the flat-head screwdriver to gently lift the connectors and release the ribbon cables.
Remove the Broken Screen
- For the bottom screen, carefully lift it out of the frame using the spudger.
- For the top screen, you may need to remove additional screws securing the screen assembly. Carefully remove these screws and lift the screen out.
Also Read- How To Play Classic Game Boy Advance Games On Your Nintendo DS Lite
Step 3: Install the New Screen
Place the New Screen
- Position the new screen in the frame. Ensure it fits snugly and aligns with the connectors.
- For the top screen, reattach any screws you removed to secure the screen assembly.
Connect the Ribbon Cables
- Carefully insert the ribbon cables from the new screen into the connectors on the motherboard.
- Use the flat-head screwdriver to secure the connectors by pushing them down gently.
Also Read- Top 7 Must-Play Games On The RG35XXSP In 2024
Step 4: Reassemble the DS Lite
Reattach the Back Cover
- Align the back cover with the front cover and press them together until the clips snap into place.
- Replace the screws you removed earlier and secure them with the Phillips-head screwdriver.
- Reattach the rubber feet over the hidden screws.
Replace the Battery
- Insert the battery back into its compartment.
- Place the battery cover over the battery and secure it with the screw.
Also Read- How To Set Up Parental Controls On The Nintendo DS Lite
Step 5: Test the Device
Power On the Nintendo DS Lite
- Press the power button to turn on the DS Lite.
- Check the screen to ensure it displays correctly and responds to touch (for the bottom screen).
Troubleshooting
If the screen does not turn on or respond correctly, double-check the ribbon cable connections. Ensure they are securely attached and not damaged. If the issue persists, you may need to inspect the connectors on the motherboard for any signs of damage.
Tips for a Successful Repair
- Work in a Clean Environment: Static electricity can damage electronic components. Ensure you work in a clean, static-free environment and avoid touching the internal components with your bare hands.
- Take Your Time: Rushing the repair can lead to mistakes. Take your time and follow each step carefully.
- Keep Track of Screws: The screws in the DS Lite are tiny and easy to lose. Use a small container to keep track of them as you remove them.
- Use Proper Tools: Using the right tools makes the repair process smoother and reduces the risk of damaging the components.
When to Seek Professional Help
If you’re not comfortable performing the repair yourself or if you encounter issues you can’t resolve, consider seeking professional help. Many repair shops specialize in fixing gaming consoles and can replace the screen for you.
Also Read- 5 Trending Games For Nintendo 3DS XL In 2024
Conclusion
Fixing a broken screen on your Nintendo DS Lite is a manageable task with the right tools and instructions. By following this step-by-step guide, you can restore your handheld console to its former glory and continue enjoying your favorite games. Whether you choose to do it yourself or seek professional help, addressing the issue promptly will ensure your DS Lite remains a cherished part of your gaming collection.
